D-Band Balanced Mixer

110 to 170 GHz, DC to 40 GHz IF, +13 dBm LO Power, WR-06 Waveguide
Availability:3 to 5 Days ARO

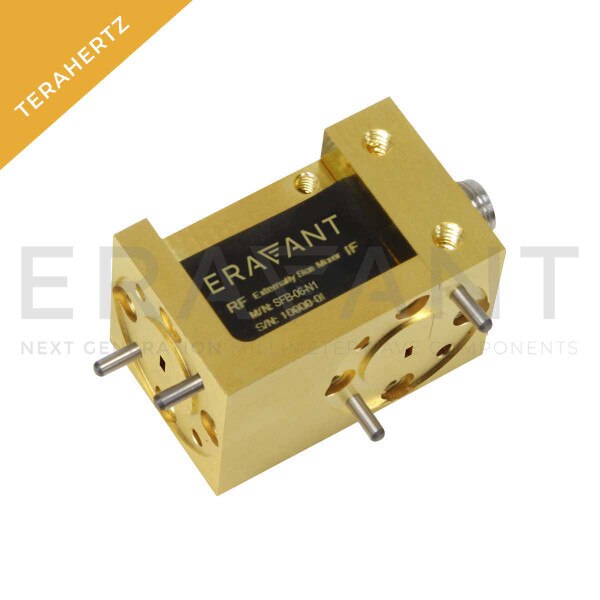

SFB-06-N1 is a D-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The mixer supports the full waveguide band operation for RF frequency from 110 to 170 GHz with an extremely broad IF output from DC to 40 GHz. The mixer offers a conversion loss of 12 dB typical and a high RF to LO port isolation of 30 dB. The typical input P-1 dB is around -3 dBm and RF to LO isolation is 30 dB nominally.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Minimum LO Frequency110 GHz
Maximum LO Frequency160 GHz
Minimum IF FrequencyDC
Maximum IF Frequency40 GHz
LO Pumping Power+13 dBm
RF PortWR-06 Waveguide
