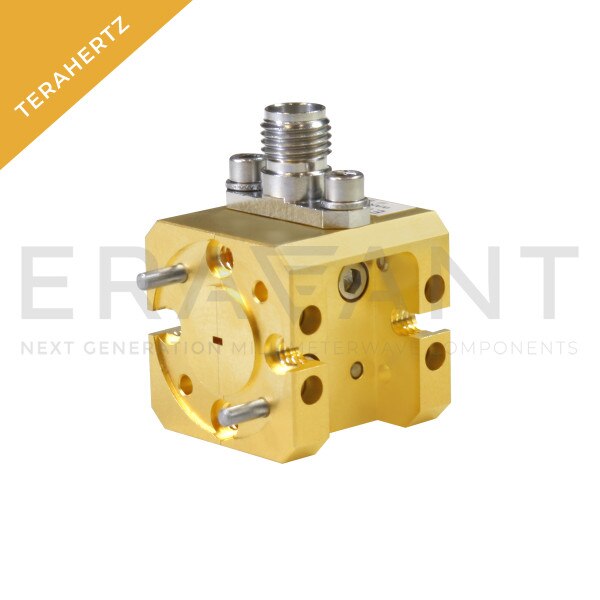

D-Band Balanced Mixer

110 to 170 GHz, DC to 40 GHz IF, +10 dBm LO Power, WR-06 Waveguide
SKU:SFB-06-NB
Availability:Contact Us for Quote
SFB-06-NB is a D-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The mixer supports the full waveguide band operation for both LO and RF frequencies from 110 to 170 GHz with an extremely broad IF output from DC to 40 GHz. The mixer offers a conversion loss of 13 dB typical and a RF to LO port isolation of 22 dB nominally. The typical input P-1dB is -3 dBm.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Minimum LO Frequency110 GHz
Maximum LO Frequency170 GHz
Minimum IF FrequencyDC
Maximum IF Frequency40 GHz
LO Pumping Power+10 dBm
RF PortWR-06 Waveguide
