D-Band Noise Source with Faraday Isolator

110 to 170 GHz, 15 dB ENR, WR-06 Waveguide
SKU:STZ-06-IT2
A liquid nitrogen (LN2) calibration service is offered under service number FCB-Z2850-S1. CLICK HERE to read more about our LN2 based true cold/hot termination method.

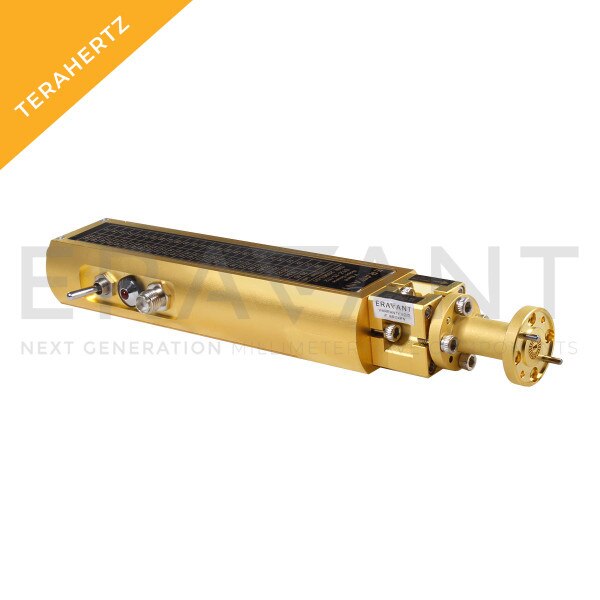

STZ-06-IT2 is a WR-06 noise source that delivers 15 dB nominal ENR across the frequency range of 110 to 170 GHz. The RF port has WR-06 UG-387/U-M Anti-Cocking Flange and the DC bias port is equipped with a female BNC connector, which is readily available for standard noise figure meter and noise figure analyzer interfaces. The noise source is designed with improved port return loss for more reliable and accurate noise figure measurements. The module can work also in either CW or pulse AM mode up to 1 kHz depending on the driving signal. The noise source features TTL triggering signal port for automatic test systems and a toggle switch to manually turn the module on and off. A Calibration Certificate for ENR values will be included.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
ENR15 dB
ENR Flatness±3 dB
AM Modulation Rate1 kHz
Return Loss15 dB
DC Bias+28 VDC/45 mA
RF OutputWR-06 Waveguide
