D-Band Down-Converter

110 to 170 GHz RF Input, 5 GHz to 65 GHz IF Output, WR-06 Waveguide
SKU:STC-11417400-06-C1

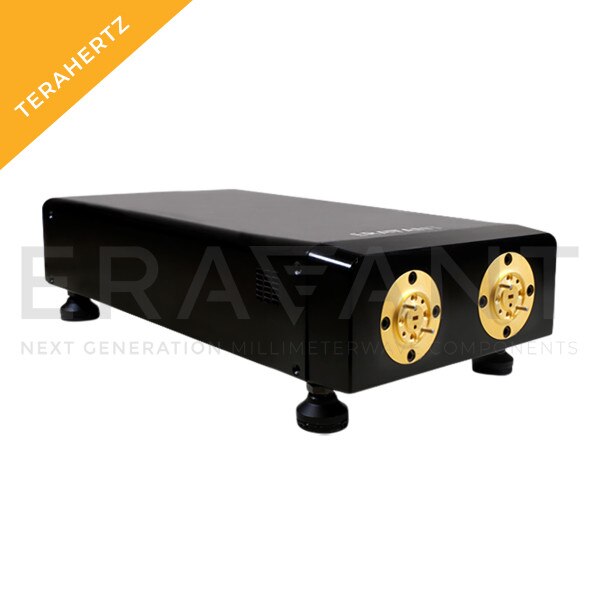

STC-11417400-06-C1 is a D-Band down-converter that converts millimeterwave signals from the frequency range of 110 to 170 GHz to the baseband at 5 to 65 GHz. The down-converter has a built-in phase locked oscillator (PLO), which is externally referenced at 10 MHz. The down converter also integrates a SPDT switch at the RF input for bypassing in order to monitor the receiving signal level. The switch is controlled by TTL signal and the bypassing “on” is at TTL “Low.” The bypassing loss is 6 dB typical. The RF ports for the downconverter is WR-06 waveguides with UG-387/U-M anti-cocking flange. The IF output is a 1.85 mm female connector and PLO reference signal input connector is an SMA (F) connector. A wall mount AC adapter is included for AC powering.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $45,000.00
3 - 4 $42,750.00
5 - 9 $40,612.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Minimum IF Frequency5 GHz
Maximum IF Frequency65 GHz
Minimum LO Frequency-
Maximum LO Frequency-
Power Supply100 VAC to 240 VAC
RF PortWR-06 Waveguide
