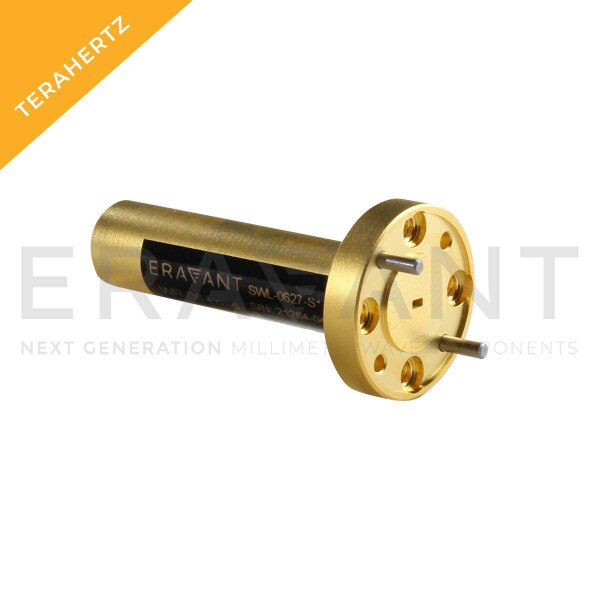

D-Band Fixed Termination Load

110 to 170 GHz, 0.5 W Power Handling, WR-06 Waveguide
SKU:SWL-0627-S1
SWL-0627-S1 is a low power, D-Band termination load that covers the frequency range of 110 to 170 GHz. The termination load exhibits a typical return loss of 26 dB. It is designed and manufactured to offer a good match for system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $600.00
10 - 24 $540.00
25 - 49 $486.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Power Handling, Watts0.5 W
Power Handling, dBm27 dBm
Return Loss26 dB
Load TypeFixed
Waveguide PortWR-06 Waveguide
