WR-06 Waveguide Shim

110 to 170 GHz, 0.014" (L) Insertion Length, 14 Mils, 1/8 λg
SKU:SWI-06014-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

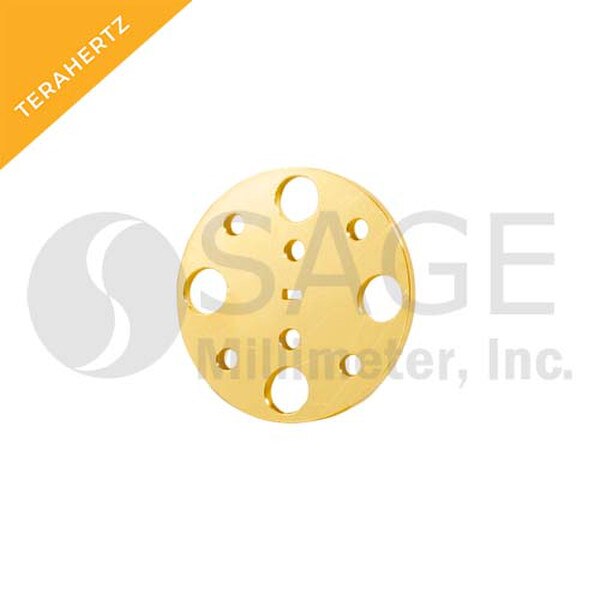

SWI-06014-SB is a 0.014” thick, 1/8 wavelength, instrumentation grade D Band waveguide spacer (shim) with WR-06 window and UG-387/U-M circular flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 110 to 170 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $210.00
25 - 49 $189.00
50 - 99 $170.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Length0.014" (L)
Mils14
WaveguideWR-06 Waveguide
