X6 Active Frequency Multiplier

110 to 140 GHz, +13 dBm Output Power, WR-08 Waveguide, F-Band
SKU:SFA-114144613-08KF-E1

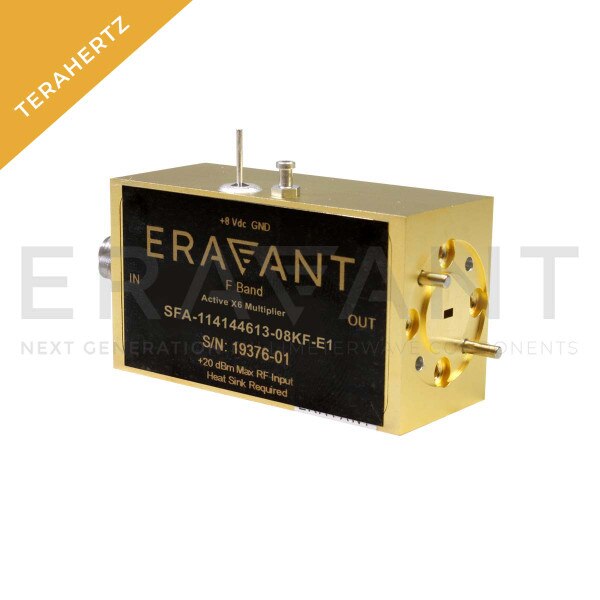

SFA-114144613-08KF-E1 is an active X6 frequency multiplier. The multiplier has an input frequency of 18.3 to 23.3 GHz with a typical input power of +3 dBm and an output frequency of 110 to 140 GHz with a typical output power of +13 dBm. The DC power requirement for the multiplier is +8 VDC/650 mA. The input port configuration is a female 2.92 mm connector and the output is a WR-08 waveguide with a UG-387/U-M anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency110 GHz
Maximum Output Frequency140 GHz
Output Power+13 dBm
Minimum Input Frequency18.3 GHz
Maximum Input Frequency23.3 GHz
Input Power+3 dBm
DC Bias+8 VDC/650 mA
Output PortWR-08 WG
Input Port2.92 mm (F)
