Broadband Dual-Polarized Quad-Ridged Horn, Product Discontinued

This product has been improved and is now listed as SAV-0635331140-2F-U1-QR. Read more about Limited Run Products here.

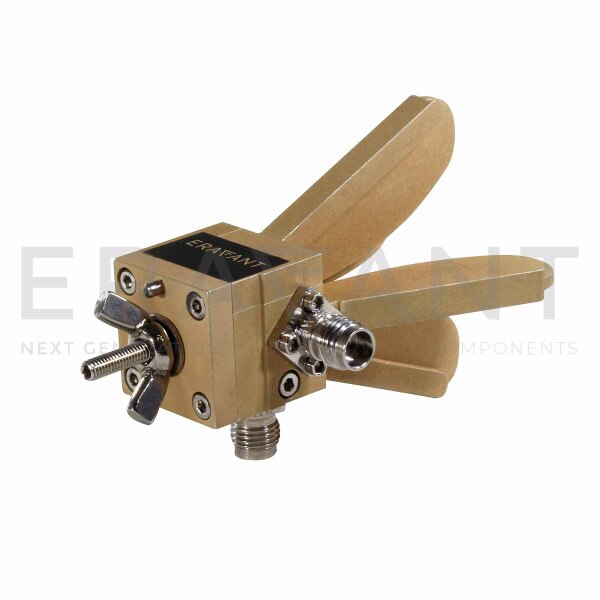

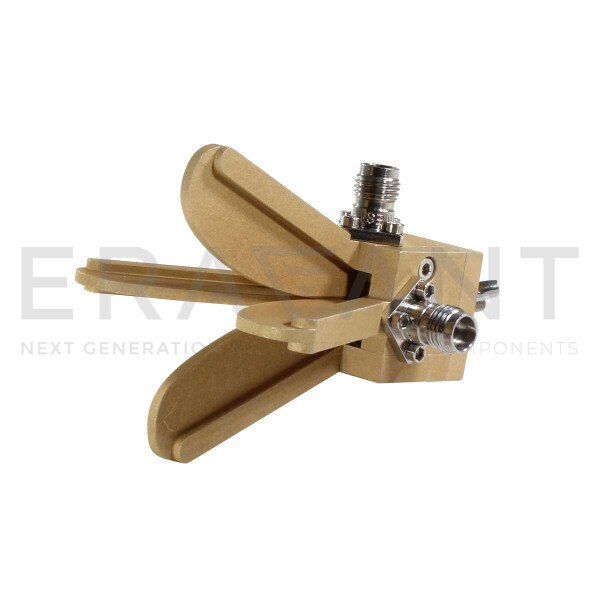

SAV-0535031140-2F-U5-QR is a quad-ridged, dual polarized broadband horn antenna that operates from 5 to 50 GHz. The antenna offers a typical gain of 11 dBi and a typical 3 dB beamwidth of 40° on both the E-plane and H-plane, respectively. The antenna supports both liner and circular polarized waveforms. The antenna features a compact design and provides an M3 screw and a mounting plate for flexible mounting capacity. The RF ports are equipped with two female 2.4 mm connectors.
