Broadband Dual-Polarized Quad-Ridged Horn

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-QR.
A 2D pattern measurement test is offered under service number FTA-0670PATT-QR.

CLICK HERE to read more about our antenna measurement capabilities.

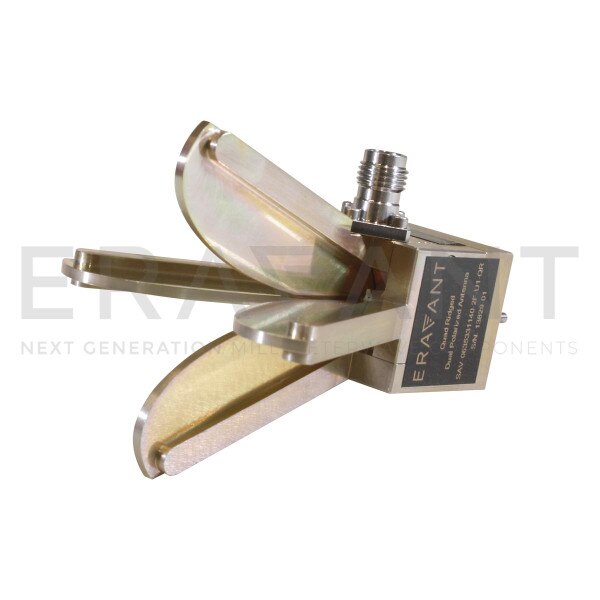

SAV-0635331140-2F-U1-QR is a quad-ridged, dual polarized broadband horn antenna that operates from 6 to 53 GHz. The antenna offers a typical gain of 11 dBi and a typical 3 dB beamwidth of 40° on both the E-plane and H-plane, respectively. The antenna supports both liner and circular polarized waveforms. The antenna includes a mounting plate with a 1/4-20 threaded hole and various other mounting holes for flexible mounting capacity. The RF ports are equipped with two female 2.4 mm connectors.
