W-Band Mechanically Tuned Gunn Oscillator

100 GHz, ±10.00 GHz Tuning Bandwidth, 0 dBm Output Power, WR-10 Waveguide

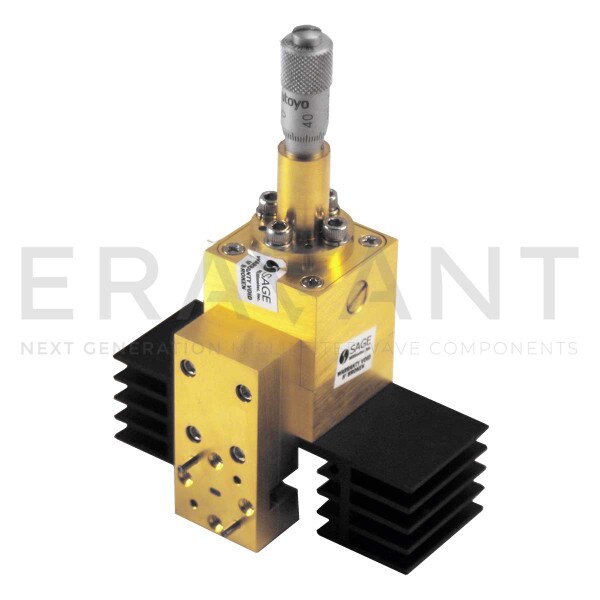

SOM-10420303-10-M1 is a W-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver 0 dBm typical power. The oscillator features a frequency tuning range of 90 to 110 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency100 GHz
Output Power0 dBm
Mechanical Tuning Range±10 GHz
Bias Tuning Range (+4.0 to +5.0 VDC)±100 MHz
Bias+5.0 VDC/850 mA
RF PortWR-10 Waveguide
Mechanical TuningMicrometer
