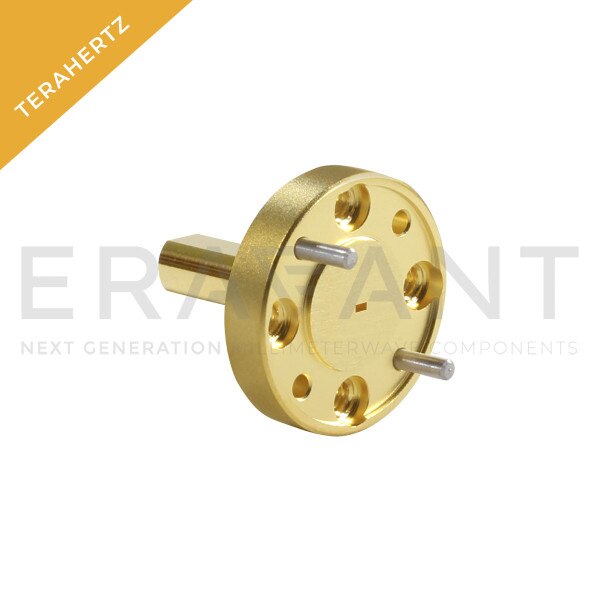

WR-06 Waveguide Rectangular Horn Antenna

10 dBi Gain, 110 to 170 GHz, D-Band
SKU:SAR-1050-06-S2
Availability:3 Days ARO
SAR-1050-06-S2 is a D-band pyramidal horn antenna that operates from 110 to 170 GHz. The antenna offers 10 dBi nominal gain and a typical half power beamwidth of 58 degrees on the E-plane and 55 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-06 waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 +$486.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain10 dBi
3 dB Beamwidth, E-Plane58°
3 dB Beamwidth, H-Plane55°
Return Loss23 dB
Antenna PortWR-06 Waveguide
