Absorptive SP16T PIN Diode Switch

0.5 to 40 GHz, 55 dB Isolation, 2.92 mm (F)
SKU:SK16-0524035010-KFKF-A8

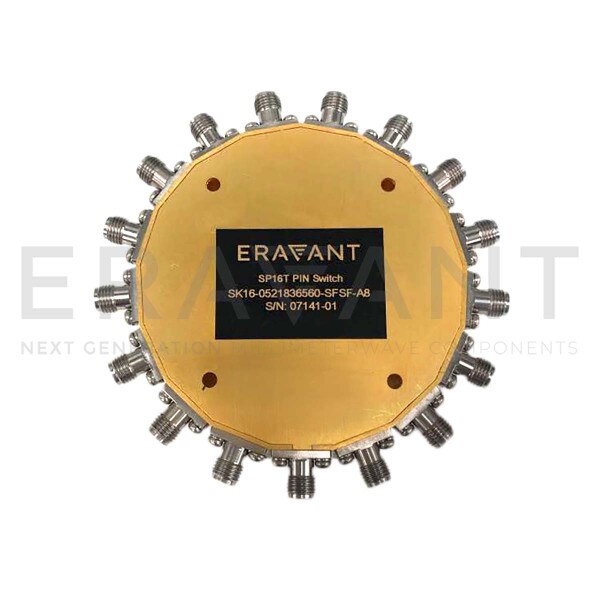

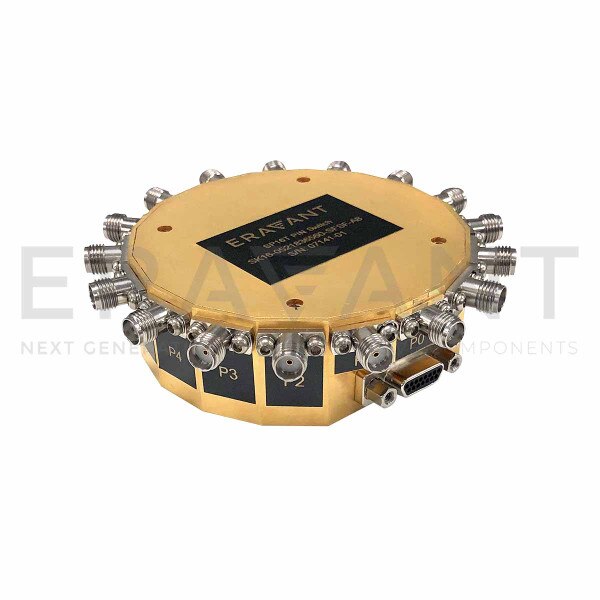

SK16-0524035010-KFKF-A8 is an absorptive PIN diode based, single pole, sixteen throw switch with a TTL driver that operates between 0.5 and 40 GHz. The switch requires a separate -5 V and +5 V biasing in addition to the 4-Bit TTL control. This model offers in-line 16 output ports, typical 10 dB insertion loss, and 45 dB minimum isolation with a typical switching speed of 50 nanoseconds. The switch has female 2.92 mm connectors for all RF ports and Micro-D15 female connector for bias and TTL control.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $7,750.00
2 $7,362.50
3 - 4 $6,994.38

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.5 GHz
Maximum Frequency40 GHz
Insertion Loss10 dB (Typ)
Isolation55 dB (Typ)
Input RF Power+23 dBm
Switching Speed50 ns (Typ)
Switch TypeAbsorptive
RF Port2.92 mm (F)
