Broadband Amplifier

0.1 to 22 GHz, 35 dB Gain, +30 dBm P1db, 5.0 dB Noise Figure, SMA (F)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

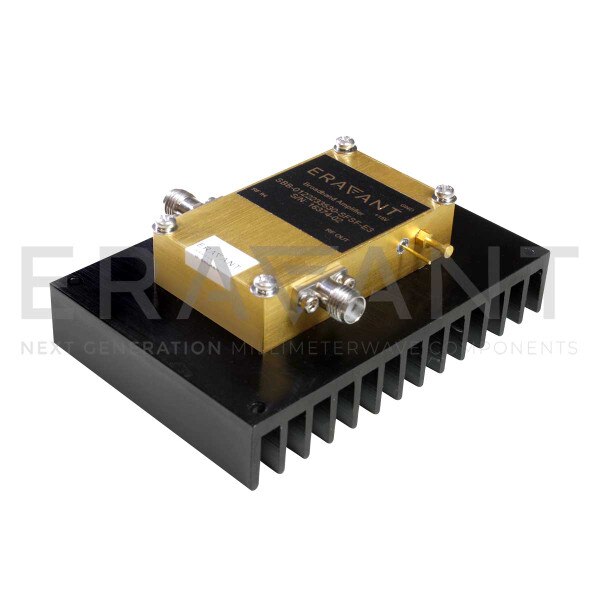

SBB-0122233530-SFSF-E3 is a broadband amplifier with a typical small signal gain of 35 dB, a nominal P1dB of +30 dBm across the frequency range of 0.1 to 22 GHz. The broadband power amplifier is based on advanced GaN device technology. The amplifier has built-in voltage regulator so that only single positive bias voltage is required. The DC power requirement for the amplifier is +15 VDC/850 mA. The RF connectors are female SMA connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,850.00
3 - 4 $3,657.50
5 - 9 $3,474.63

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.1 GHz
Maximum Frequency22 GHz
Gain35 dB
P1dB+30 dBm
Psat+32 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+15 VDC/850 mA
RF Input/OutputSMA (F)
