WRD-650 Waveguide to Coax Adapter, Double-Ridged

WRD-650 Waveguide to SMA (M), End Launch
SKU:SWC-650SM-E1-WRD
Availability:Contact Us for Quote

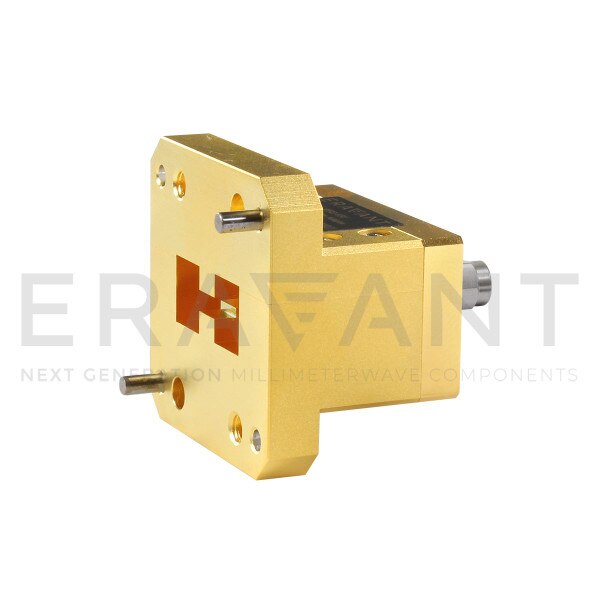

SWC-650SM-E1-WRD is an end launch (180°) WRD-650 double ridged waveguide to coax adapter that cover the frequency range of 6.5 to 18 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the double ridged waveguide and SMA coax connector. The right angle (90°) versions are offered under models SWC-650SF-R1-WRD and SWC-650SM-R1-WRD.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency6.5 GHz
Maximum Frequency18 GHz
Insertion Loss0.30 dB
Return Loss20 dB
Power Handling100 W
Waveguide PortWRD-650 Waveguide
Coax TypeSMA
Coax GenderMale
ConfigurationEnd Launch (180°), Double Ridged
