WR-34 Waveguide to Coax Adapter

WR-34 Waveguide to 2.92 mm (F), End Launch
Availability:1 Week ARO

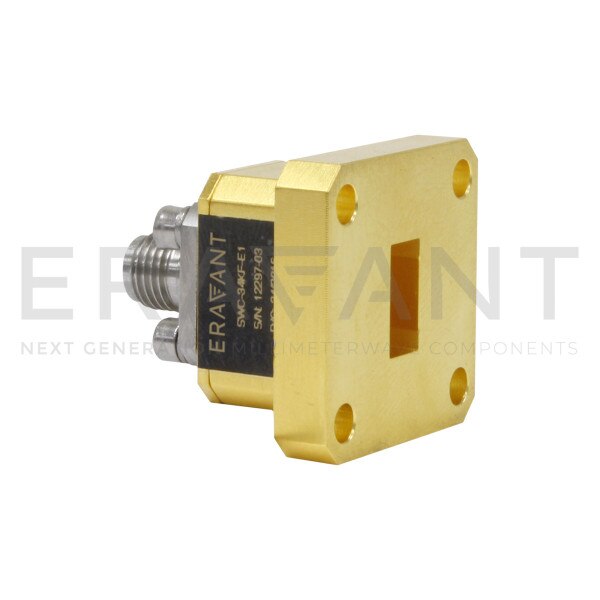

SWC-34KF-E1 is an end launch (180°) WR-34 waveguide to coax adapter that covers the frequency range of 22 to 33 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.92 mm (K) coax connector. The right angle (90°) version is offered under model number SWC-34KF-R1.
Login to view pricing

Bulk Pricing

1 - 24$340.00
25 - 49$306.00
50 +$275.40

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss0.35 dB
Return Loss20 dB
Power Handling50 W
Waveguide PortWR-34 Waveguide
Coax TypeK (2.92 mm)
Coax GenderFemale
ConfigurationEnd Launch (180°)
