90° E-Plane Waveguide Bend

WR-34 Waveguide WR-34 Band, 1.25" Bend Radius
SKU:SWB-34090-EB
Availability:Contact Us for Quote

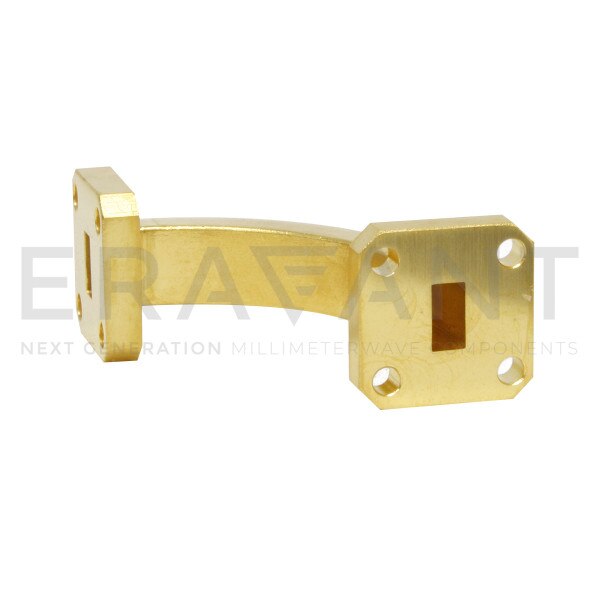

SWB-34090-EB is a 90 degree, WR-34 E-plane waveguide bend with UG-1530/U square flanges. The bend radius is 1.25”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 22 to 33 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length1.25"
Waveguide SizeWR-34
