45° E-Plane Waveguide Bend

WR-34 Waveguide, 34 Band, 1.25" Bend Radius
SKU:SWB-34045-EB
Availability:Contact Us for Quote

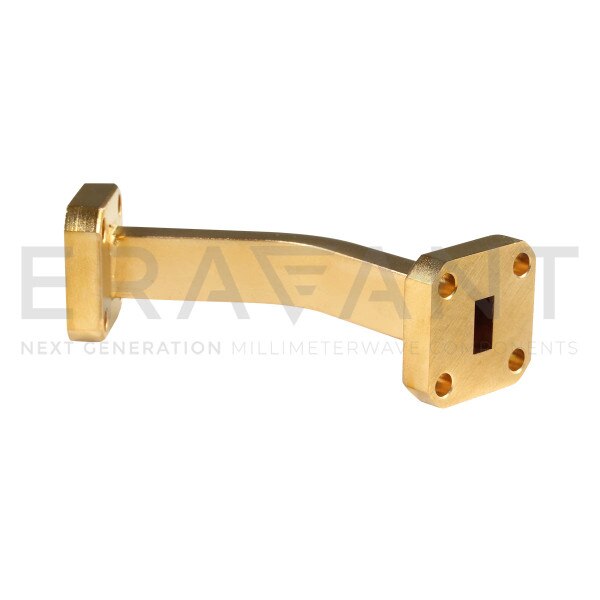

SWB-34045-EB is a 45 degree, WR-34 E-plane waveguide bend with UG-1530/U flanges. The bend Radius is 1.25”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 22 to 33 GHz. The waveguide is also available in instrumentation grade.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Angle45 Degrees
OrientationE-Plane Bend
Bend Radius/Length1.25"
Waveguide SizeWR-34
