WR-34 Uni-Guide™ Waveguide Connector

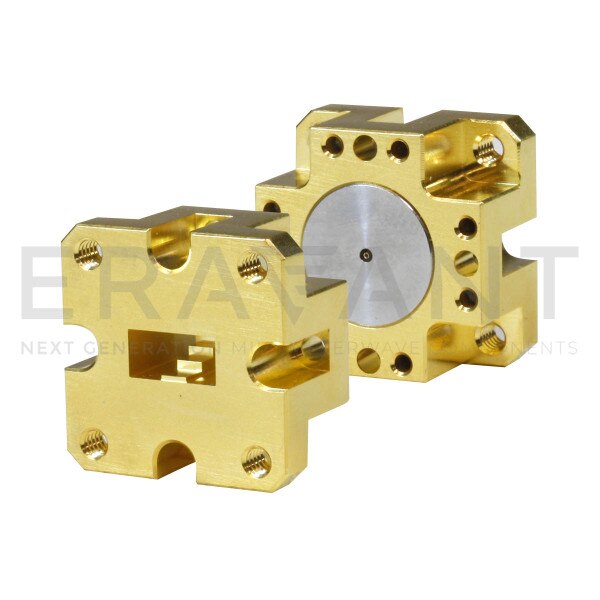

SUF-3412-750-S1 is a WR-34 Uni-Guide™ waveguide connector that covers the full band frequency range from 22 to 33 GHz. The waveguide connector offers an efficient standard waveguide interface without any mechanical modifications. It is designed to be interchangeable with two-hole flange-mount 2.92 mm coax connectors with a mounting hole separation of 0.750”. The waveguide connector’s receptacle will accept a 12-mil diameter pin from a standard coaxial glass bead feedthrough. The waveguide connector is not only designed for Eravant’s standard products, but also for many industrial standard microwave and millimeter wave products. Like the coax connector offering a coaxial RF interface, this waveguide connector provides a direct waveguide RF interface. Waveguide connectors with receptacles for accepting different glass bead pin sizes such as 9, 15, and 20 mils, different mounting hole separations, various mechanical designs, and other frequency bands in the frequency range of 8.2 to 110 GHz are offered under different model numbers. The Uni-Guide™ helps to eliminate waveguide interfaced product development cycle time, reduce inventory management efforts, offer various port configurations/orientations, and preserve hermetical packaging without introducing an expensive waveguide window sealing process.
