WR-28 Flexible Twistable Waveguide Section (Flexguide)

300 mm (11.81"), Grooved Flange
SKU:SWG-28118-FB-FT-G
Availability:IN STOCKPlease contact us if you need more units than what is available online.

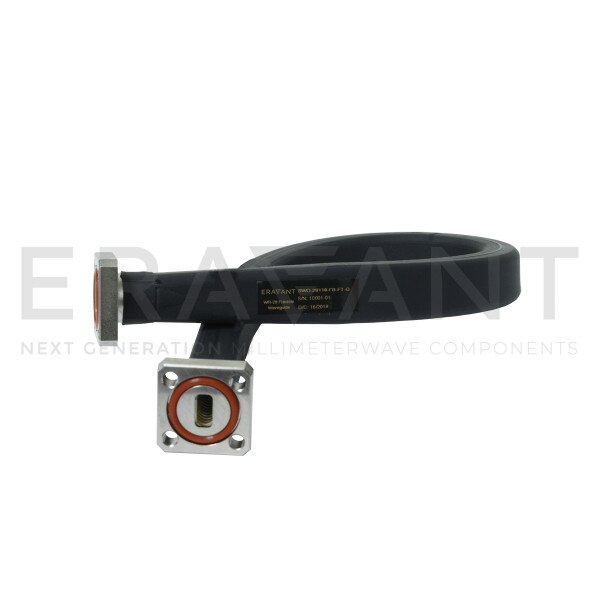

SWG-28118-FB-FT-G is a 11.81" (300 mm) long, Ka-band flexible and twistable waveguide section with a WR-28 waveguide and UG-599/U flange. It also has a vulcanized silicone rubber jacket for robustness applications. The waveguide features a flexible bend with a static twist to be long-term stress free when it is integrated in a system. The flanges of the waveguide are grooved to accept rubber rings to be watertight for outdoor applications. The waveguide is manufactured with a precision manufacturing process to ensure high quality. The waveguide has low insertion loss in the frequency range of 26.5 to 40 GHz. Additional standard lengths and custom length options are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Return Loss21 dB
Insertion Loss0.6 dB
Insertion Length11.81"
Waveguide SizeWR-28 Waveguide
