WR-22 Waveguide to Coax Adapter

WR-22 Waveguide to 2.92 mm (F), End Launch
SKU:SWC-22KF-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

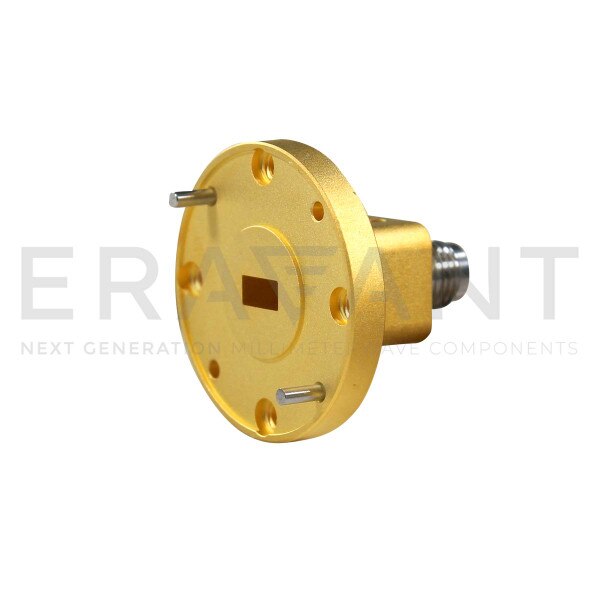

SWC-22KF-E1 is an end launch (180°) Q-Band waveguide to coax adapter that covers the frequency range of 33 to 43 GHz. The adapters are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.92 mm (K) coax connector. The right angle (90°) versions are offered under model numbers SWC-22KF-R1 and SWC-22KM-R1.

ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency40 GHz
Insertion Loss0.40 dB
Return Loss18 dB
Power Handling50 W
Waveguide PortWR-22 Waveguide
Coax Type2.92 mm (K)
Coax GenderFemale
ConfigurationEnd Launch (180°)
