WR-22 Waveguide to Coax Adapter

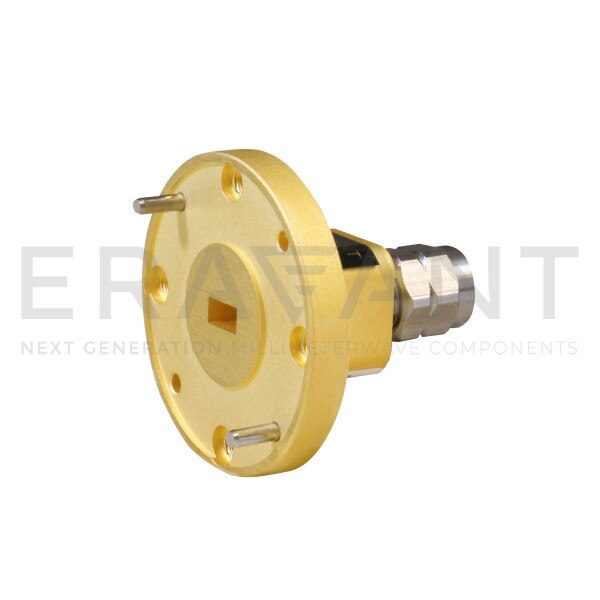

WR-22 Waveguide to 2.4 mm (M), End Launch
SKU:SWC-222M-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWC-222M-E1 is an end launch (180°) WR-22 waveguide to coax adapter that covers the frequency range of 33 to 50 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.4 mm coax connector. The right angle (90°) version is offered under model number SWC-222M-R1.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$585.00
10 - 24$526.50
25 +$473.85

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.40 dB
Return Loss18 dB
Power Handling40 W
Waveguide PortWR-22 Waveguide
Coax Type2.4 mm
Coax GenderMale
ConfigurationEnd Launch (180°)
