WR-22 Waveguide to Coax Adapter

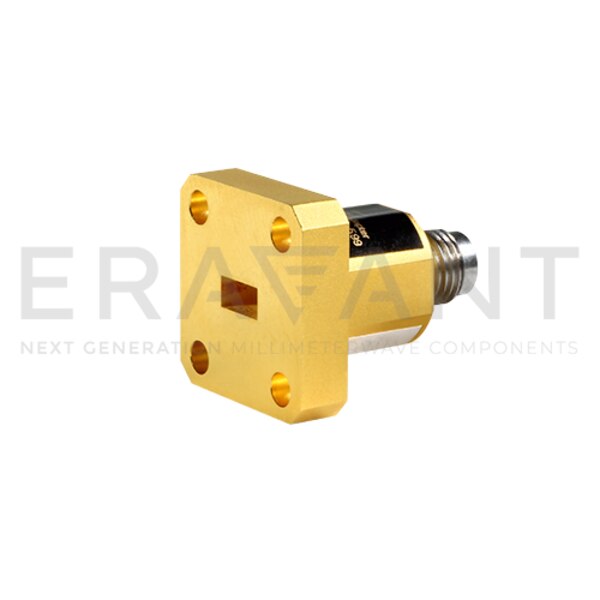

WR-22 Waveguide to 2.4 mm (F), End Launch, Non-Standard UG-599 Square Flange
SKU:SWC-222F-E1-599
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWC-222F-E1-599 is an end launch (180°) WR-22 waveguide to coax adapter with a non-standard square UG-599/U-M flange that covers the frequency range of 33 to 50 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 2.4 mm coax connector. The right angle (90°) version is offered under model number SWC-222F-R1-599.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.40 dB
Return Loss18 dB
Power Handling40 W
Waveguide PortWR-22 Waveguide
Coax Type2.4 mm
Coax GenderFemale
ConfigurationEnd Launch (180°)
