WR-22 Waveguide to Coax Adapter

WR-22 Waveguide to 1.85 mm (M), End Launch, Thermal Vacuum Safe
SKU:SWC-22VM-E1-V
Availability:IN STOCKPlease contact us if you need more units than what is available online.

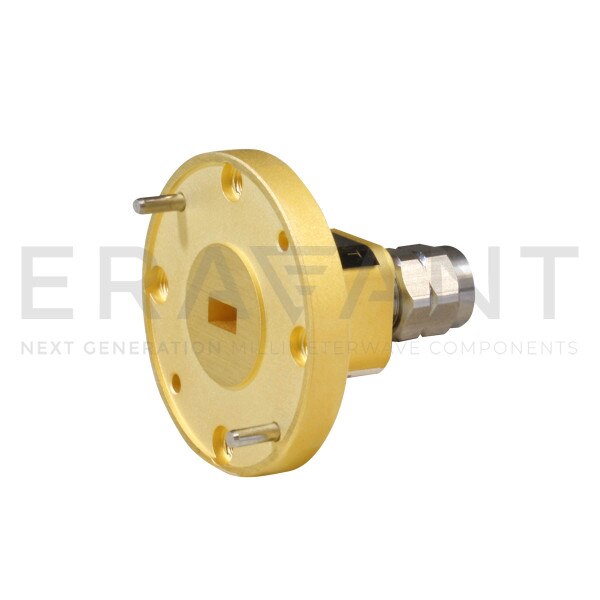

Models SWC-22VF-E1-V and SWC-22VM-E1-V are end launch (180°) Q-Band waveguide to coax adapters that cover the frequency range of 33 to 50 GHz. The adapters are designed and manufactured for instrumentation grade quality and thermal compatibility, allowing for an efficient transition between the rectangular waveguide and 1.85 mm (V) coax connector. The right angle (90°) versions are offered under model numbers SWC-22VF-R1-V and SWC-22VM-R1-V.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.40 dB
Return Loss18 dB
Power Handling40 W
Waveguide PortWR-22 Waveguide
Coax Type1.85 mm (V)
Coax GenderMale
ConfigurationEnd Launch (180°)
