Waveguide Taper Transition

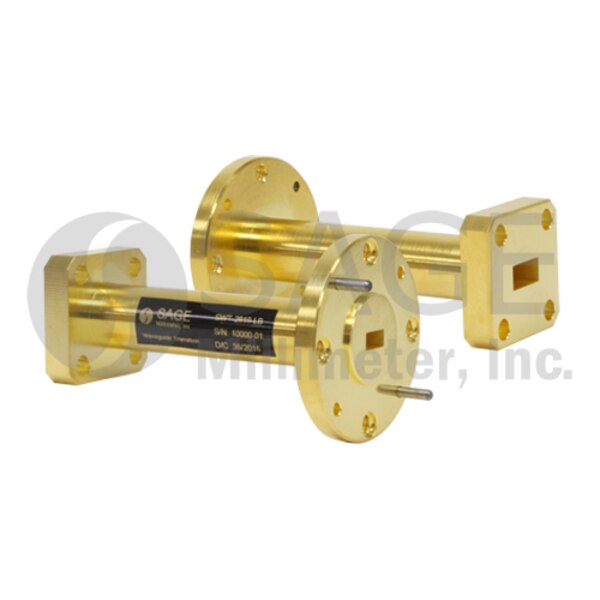

SWT-2219-LB-599 is a WR-22 to WR-19 rectangular waveguide taper transition. The WR-22 port is configured with a UG-599/U-M style flange, while the WR-19 port is configured with the standard UG-383/U-M flange. The taper transition is manufactured by using either EDM machining or electro-forming techniques to ensure high accuracy and quality surface finishing. The transition only induces a fraction of dB insertion loss and offers a return loss of 32 dB or better.
