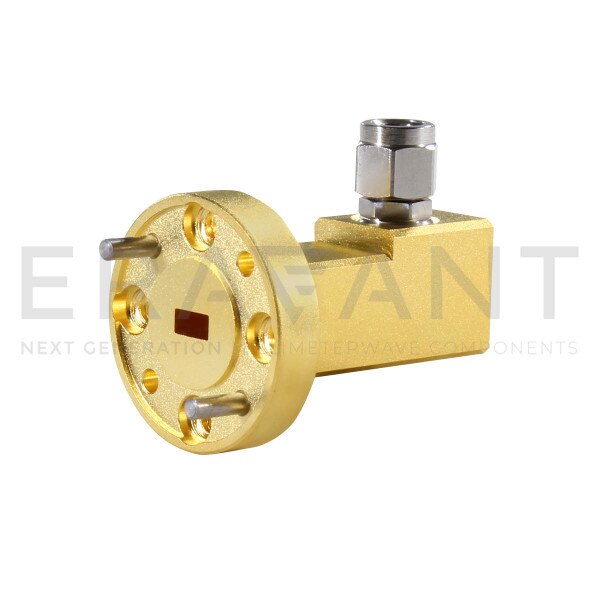

WR-15 Waveguide to Coax Adapter

WR-15 Waveguide to 1 mm (M), Right Angle
SKU:SWC-151M-R1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

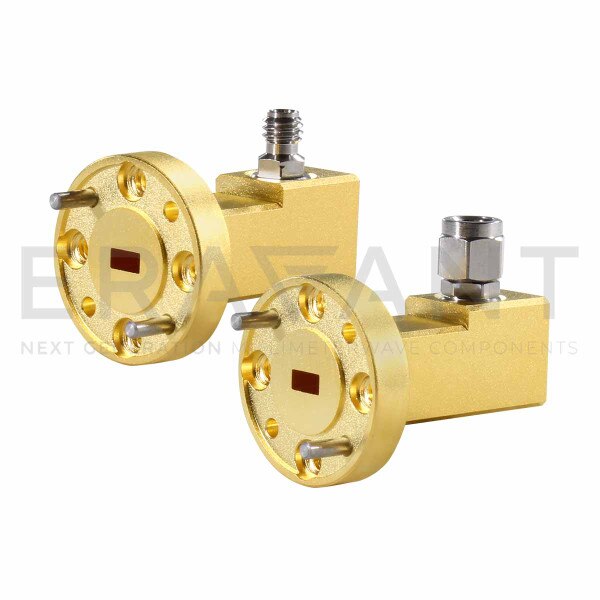

SWC-151M-R1 are right angle (90°) V-Band waveguide to coax adapters that cover the frequency range of 50 to 75 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 1.0 mm coax connector. The end launch (180°) versions are offered under model numbers SWC-151F-E1 and SWC-151M-E1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss0.70 dB
Return Loss16 dB
Power Handling10 W
Waveguide PortWR-15 Waveguide
Coax Type1.0 mm
Coax GenderMale
ConfigurationRight Angle (90°)
