WR-15 Waveguide to Coax Adapter

WR-15 Waveguide to 1 mm (M), End Launch
SKU:SWC-151M-E1
Availability:1 to 2 Weeks ARO

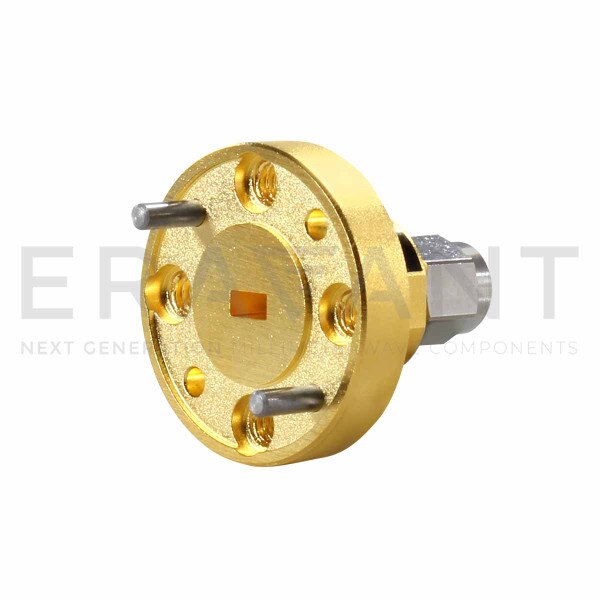

SWC-151M-E1 is an end launch (180°) WR-15 waveguide to coax adapter that covers the frequency range of 50 to 75 GHz. The adapter is designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 1 mm coax connector. The right angle (90°) version is offered under model number SWC-151M-R1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss0.70 dB
Return Loss15 dB
Power Handling10 W
Waveguide PortWR-15 Waveguide
Coax Type1.0 mm
Coax GenderMale
ConfigurationEnd Launch (180°)
