90° Waveguide Twist

WR-12 Waveguide, E-Band, 1.25" Insertion Length
SKU:SWB-12090-TB
Availability:IN STOCKPlease contact us if you need more units than what is available online.
For a more cost effective option that can deliver immediately, consider our Limited Run model SWB-12090-TB-NAC as an alternative solution. Read more about Limited Run Products here.

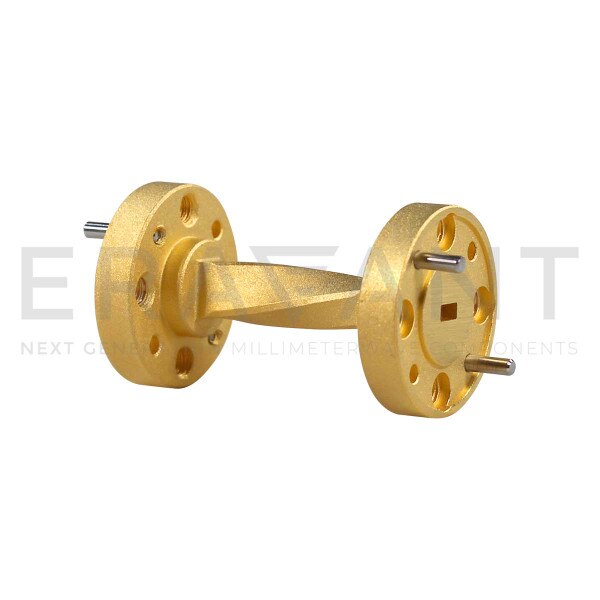

SWB-12090-TB is a 90 degree, WR-12 waveguide twist with UG-387/U anti-cocking flanges. The length of the twist is 1.25”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 60 to 90 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $160.00
25 - 49 $144.00
50 - 99 $129.60

Bulk Availability

QuantityAvailability
1 - 3In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.25"
Waveguide SizeWR-12
