45° Right-Handed Waveguide Twist

WR-12 Waveguide, E-Band, 1.25" Insertion Length
SKU:SWB-12045R-TB
Availability:3 to 4 Weeks ARO

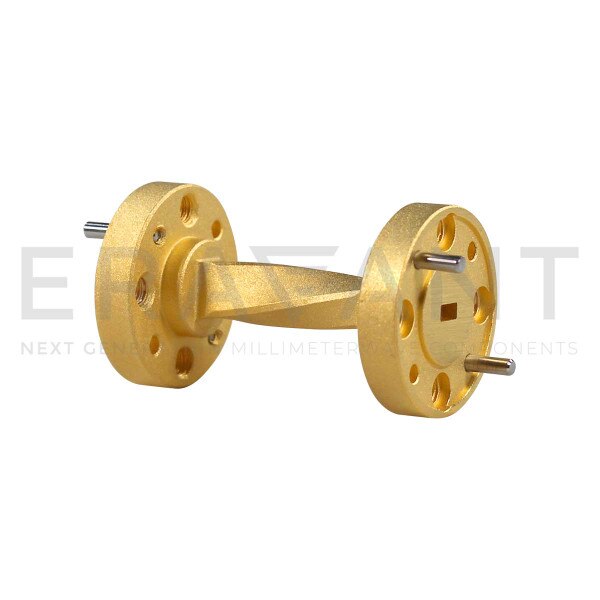

SWB-12045R-TB is a 45 degree, WR-12 right-handed waveguide twist with UG-387/U circular flanges. The length of the twist is 1.25”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 60 to 90 GHz. The corresponding left-handed twist is offered under model number SWB-12045L-TB.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $160.00
25 - 49 $144.00
50 - 99 $129.60

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle45 Degrees
OrientationRight-Handed Twist
Bend Radius/Length1.25"
Waveguide SizeWR-12
