90° Waveguide Twist, Non Anti-Cocking, Limited Run

WR-12 Waveguide, E-Band, 1.0" Insertion Length
SKU:SWB-12090-TB-NAC-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-12090-TB-1.0 as an alternative solution. Read more about Limited Run Products here.

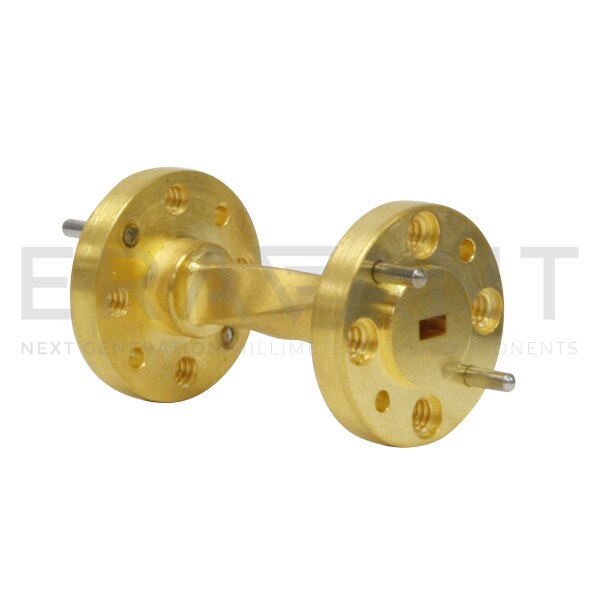

SWB-12090-TB-NAC-1.0 is a 90 degree, WR-12 waveguide twist with UG-387/U circular flanges. The length of the twist is 1.00”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 60 to 90 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $128.00
25 - 49 $115.20
50 - 99 $103.68

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.0"
Waveguide SizeWR-12
