90° H-Plane Waveguide Bend, Non Anti-Cocking, Limited Run

WR-10 Waveguide, W-Band, 1.0" Bend Radius
SKU:SWB-10090-HB-NAC-1.0
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWB-10090-HB-1.0 as an alternative solution. Read more about Limited Run Products here.

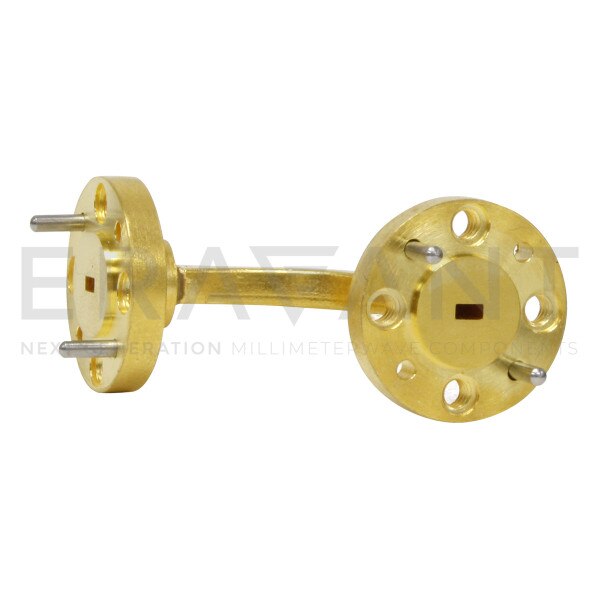

SWB-10090-HB-NAC-1.0 is a 90 degree, WR-10 H-plane waveguide bend with UG-387/U-M circular flanges. The bend radius is 1.0”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 75 to 110 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $128.00
25 - 49 $115.20
50 - 99 $103.68

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length1.0"
Waveguide SizeWR-10
