WR-10 Waveguide to Coax Adapter

WR-10 Waveguide to 1 mm (F), Right Angle,Thermal Vacuum Safe

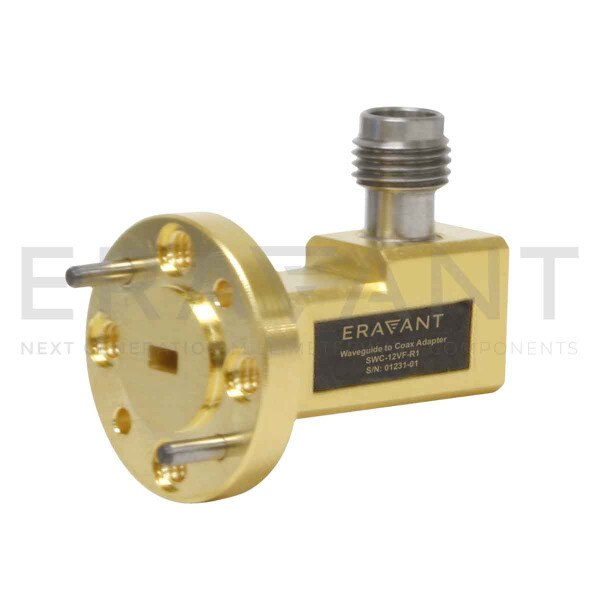

SWC-101F-R1-V are right angle (90°) W-Band waveguide to coax adapters that cover the frequency range of 75 to 110 GHz. They are designed and manufactured for instrumentation grade quality and thermal vacuum compatibility, allowing for an efficient transition between the rectangular waveguide and 1.0 mm coax connector. The end launch (180°) versions are offered under model numbers SWC-101F-E1-V and SWC-101M-E1-V.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss1.20 dB
Return Loss15 dB
Power Handling10 W
Waveguide PortWR-10 Waveguide
Coax Type1.0 mm
Coax GenderFemale
ConfigurationRight Angle (90°)
