WR-10 Waveguide to Coax Adapter

WR-10 Waveguide to 1 mm (F), End Launch
SKU:SWC-101F-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

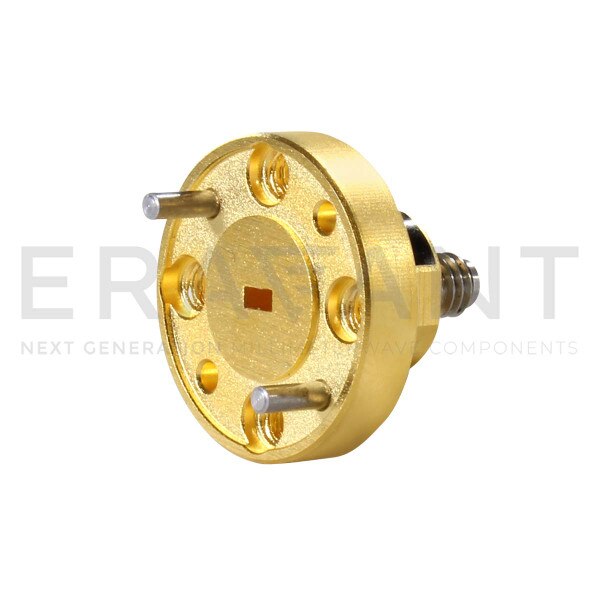

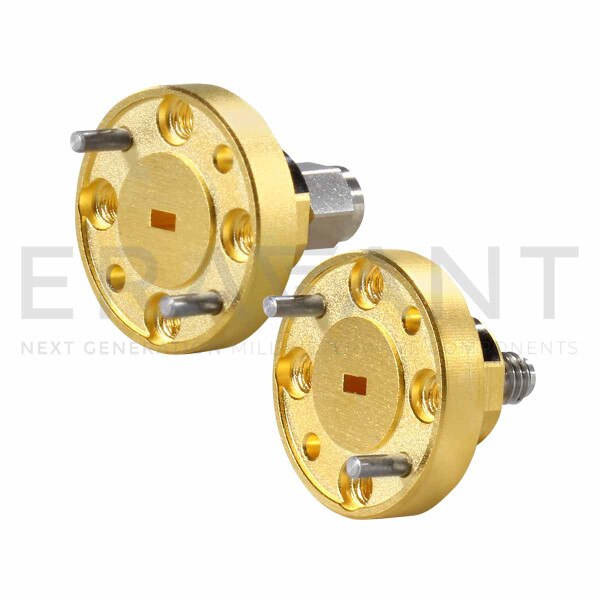

SWC-101F-E1 are end launch (180°) W-Band waveguide to coax adapters that cover the frequency range of 75 to 110 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 1.0 mm coax connector. The right angle (90°) versions are offered under model numbers SWC-101F-R1 and SWC-101M-R1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss1.20 dB
Return Loss15 dB
Power Handling10 W
Waveguide PortWR-10 Waveguide
Coax Type1.0 mm
Coax GenderFemale
ConfigurationEnd Launch (180°)
