90° Waveguide Twist

WR-08 Waveguide, F-Band, 1.25" Insertion Length
SKU:SWB-08090-TB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

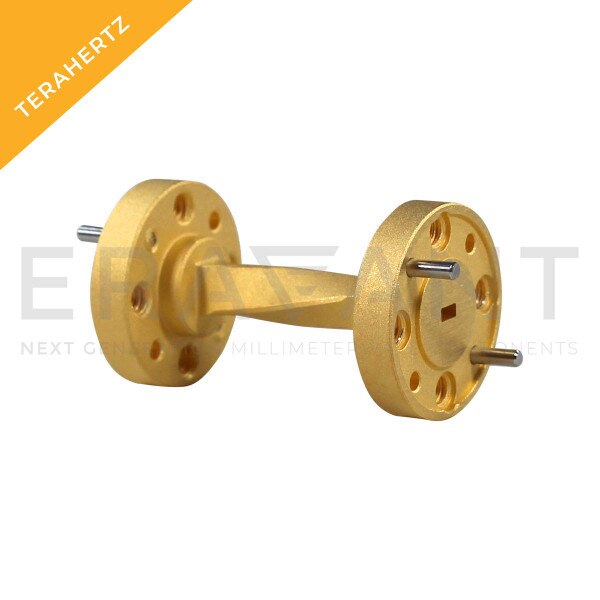

SWB-08090-TB is a 90 degree, WR-08 waveguide twist with UG-387/U-M circular anti-cocking flanges. The insertion length of the twist is 1.25”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 90 to 140 GHz. Additional lengths may be available in stock, please contact us to inquire further.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.25"
Waveguide SizeWR-08
