90° E-Plane Waveguide Bend

WR-06 Waveguide, D-Band, 0.75" Bend Radius
SKU:SWB-06090-EB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

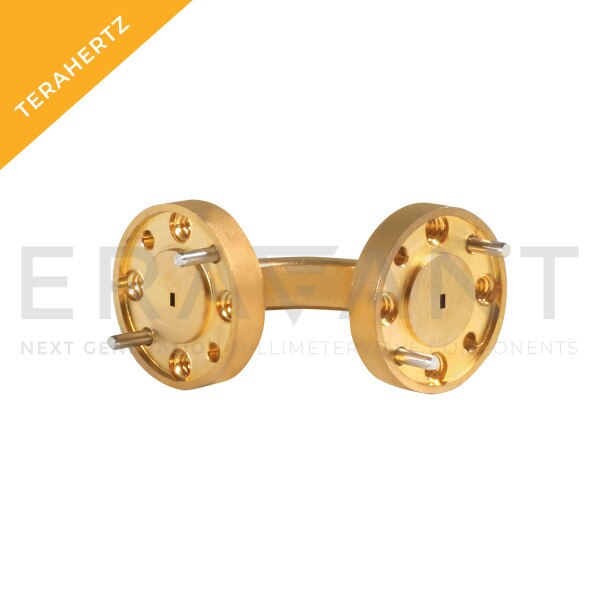

SWB-06090-EB is a 90 degree, WR-06 E-plane waveguide bend with UG-387/U-M circular flanges. The bend radius is 0.75". The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 110 to 170 GHz. Additional lengths may be available in stock, please contact us to inquire further.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $185.00
25 - 49 $166.50
50 - 99 $149.85

Bulk Availability

QuantityAvailability
1 - 17In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-06
