45° Left-Handed Waveguide Twist

WR-06 Waveguide, D-Band, 1.0" Insertion Length
Availability:IN STOCKPlease contact us if you need more units than what is available online.

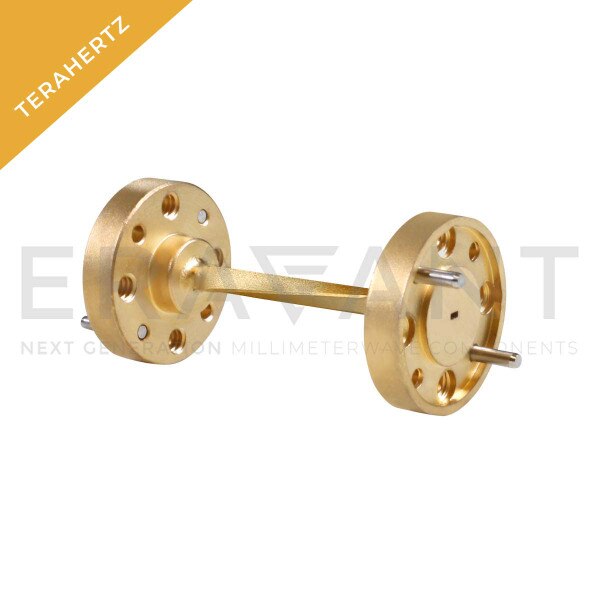

SWB-06045L-TB-1.0 is a 45 degree, WR-06 left-handed waveguide twist with UG-387/U-M anti-cocking flanges. The length of the twist is 1.0”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 110 to 170 GHz.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Angle45 Degrees
OrientationLeft-Handed Twist
Bend Radius/Length1.00"
Waveguide SizeWR-06
