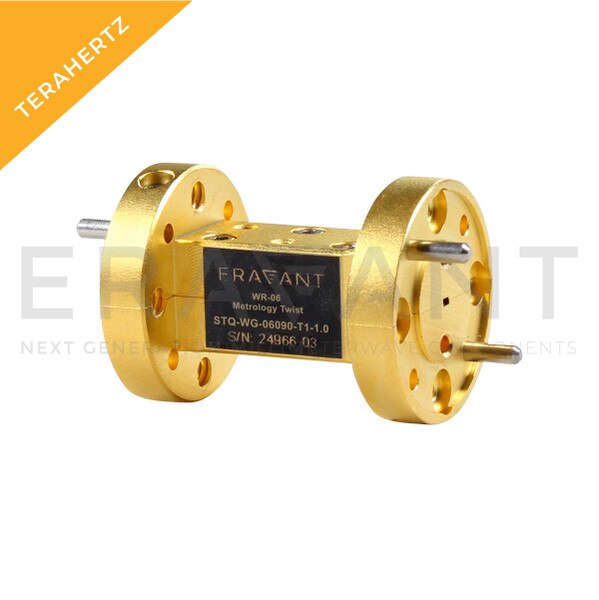

90° Waveguide Twist, Precision Machined

STQ-WB-06090-T1-1.0 is a 90 degree, D-band waveguide twist with UG-387/U-M precision anti-cocking flanges. The waveguide twist covers the frequency range of 110 to 170 GHz. The waveguide twist is manufactured with precision machining as a split-block body, which results in a robust, reinforced mechanical structure that will not flex or bend compared to traditional waveguide sections made with thin-wall tubing and brazed joints. Other lengths are available under different model numbers.
