Waveguide Taper Transition

WR-06 Rectangular to WR-04 Waveguide
SKU:SWT-0604-LB
Availability:4 to 6 Weeks ARO

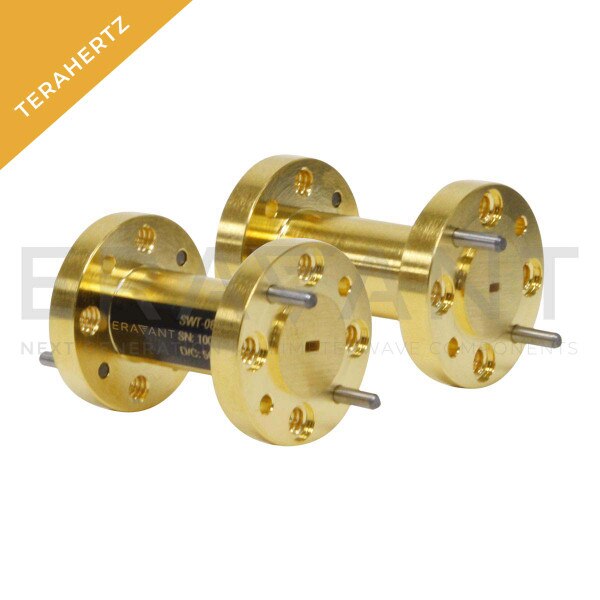

SWT-0604-LB is a WR-06 to WR-04 rectangular waveguide taper transition. The taper transition is manufactured by either EDM machining or electro-forming techniques to ensure high accuracy and a quality surface finish. The transition only induces a fraction of a dB insertion loss and offers a VSWR of 1.08:1 or better.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Waveguide Size 1WR-06 Waveguide
Waveguide Size 2WR-04 Waveguide
Transition TypeTaper
Insertion Length1.0"
