WR-06 Waveguide Open

D-Band, Fixed
SKU:SWO-06-F1
Availability:4 to 6 Weeks ARO

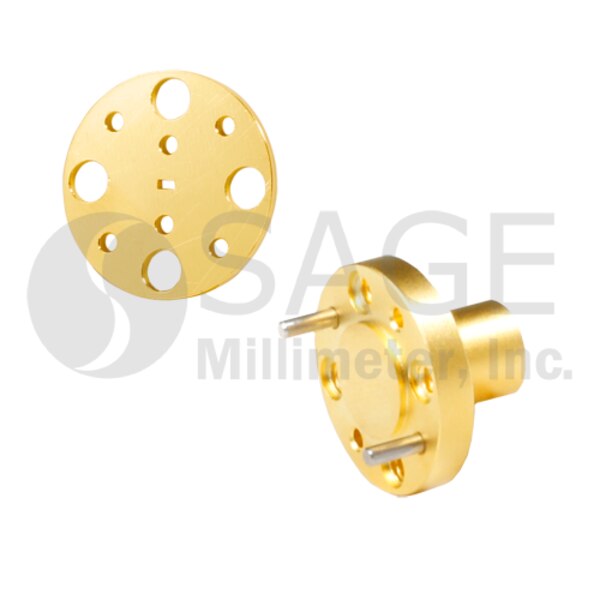

SWO-06-F1 is a fixed waveguide open with a UG-387/U-M flange covering the frequency range from 110 to 170 GHz. The product consists of a waveguide short (model number SWS-VG-F1) and a ¼ ?g waveguide shim (model number SWI-06028-SB). The waveguide shim is 0.028" thick offering perfect open at the center frequency of 140 GHz when combined with the waveguide short. The product is manufactured with a precision machining process to ensure high quality and ruggedness. The open offers good reflection in the entire frequency range.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$375.00
25 - 49$337.50
50 +$303.75

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Length0.028"
Waveguide FlangeUG-387/U-M Flange
Waveguide Short TypeFixed
