90° Waveguide Twist

WR-05 Waveguide, G-Band, 1.25" Insertion Length
SKU:SWB-05090-TB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

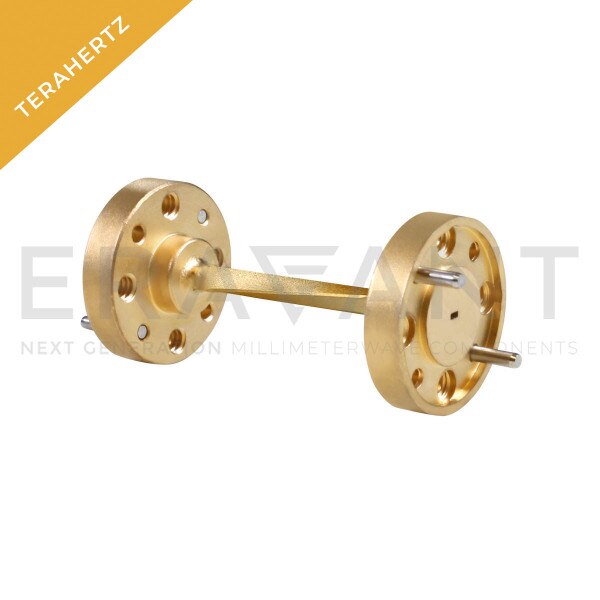

SWB-05090-TB is a 90 degree, WR-05 waveguide twist with UG-387/U-M Anti-Cocking Flange flange. The length of the twist is 1.25”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 140 to 220 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $265.00
25 - 49 $238.50
50 - 99 $214.65

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.25"
Waveguide SizeWR-05
