Metrology Grade Straight Waveguide Section, Limited Run

WR-05 Waveguide, 140 to 220 GHz, 2.5"
SKU:STQ-WG-05025-F1-A-R
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STQ-WG-05025-FB-CF as an alternative solution. Read more about Limited Run Products here.

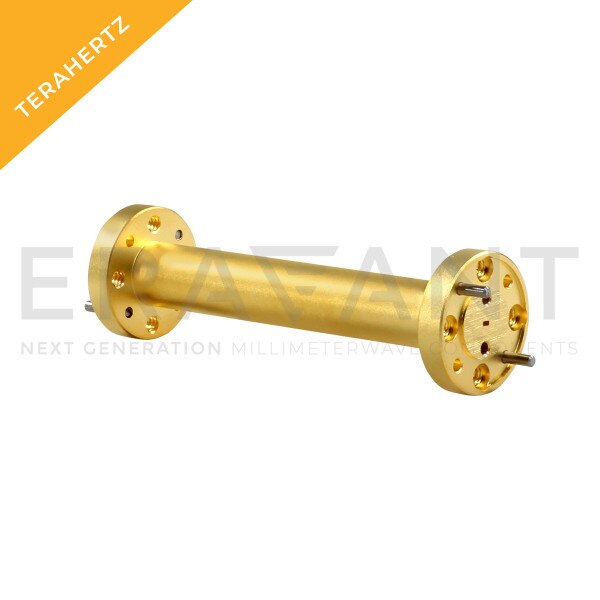

STQ-WG-05025-F1-A-R is a 2.5” long, G-band straight waveguide section with a WR-05 waveguide and UG-387/U-M precision anti-cocking circular flanges. The straight waveguide is designed and manufactured with a precision machining process to ensure high quality and ruggedness for metrology applications. The extended length and enhanced waveguide section are particularly considered for easy DUT (device under testing) connections and stress sustaining.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Waveguide SizeWR-05 Waveguide
Insertion Length2.5"
