90° E-Plane Waveguide Bend

WR-05 Waveguide, G-Band, 1.0" Bend Radius
SKU:SWB-05090-EB-1.0
Availability:IN STOCKPlease contact us if you need more units than what is available online.

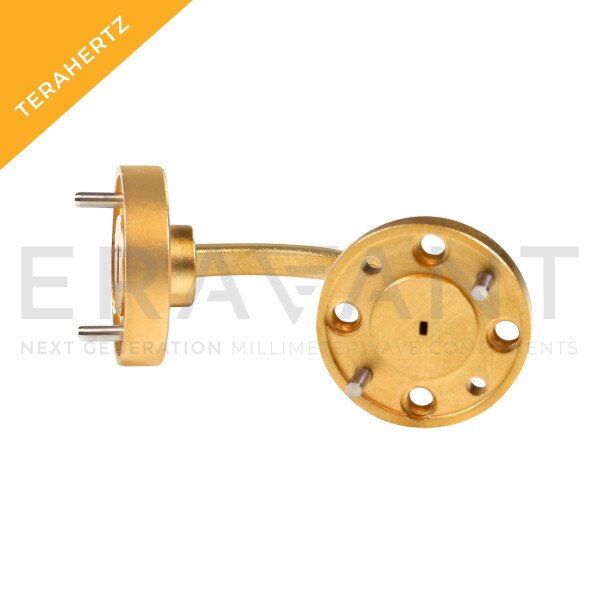

SWB-05090-EB-1.0 is a 90 degree, WR-05 E-plane waveguide bend with UG-387/U-M anti-cocking flanges. The bend radius is 1.0”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 140 to 220 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length1.0"
Waveguide SizeWR-05
