90° Waveguide Twist

WR-04 Waveguide, 1.5" Insertion Length
SKU:SWB-04090-TB-1.5
Availability:Contact Us for Quote

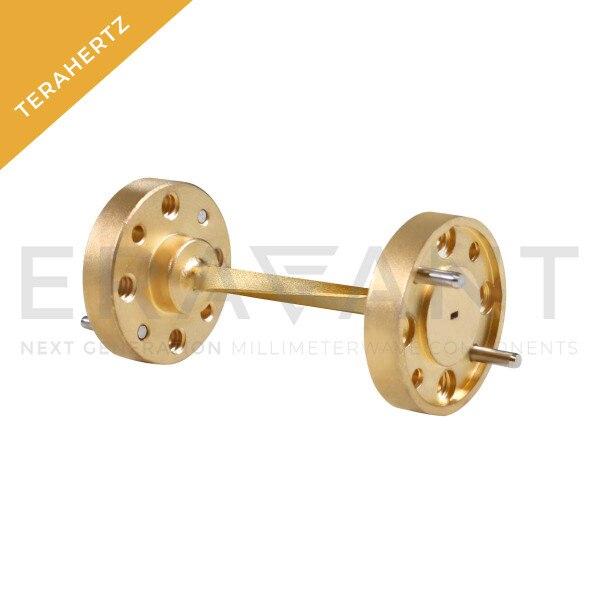

SWB-04090-TB-1.5 is a 90 degree, WR-04 waveguide twist with UG-387/U-M anti-cocking flange. The length of the twist is 1.5”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 170 to 260 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length1.5"
Waveguide SizeWR-04
