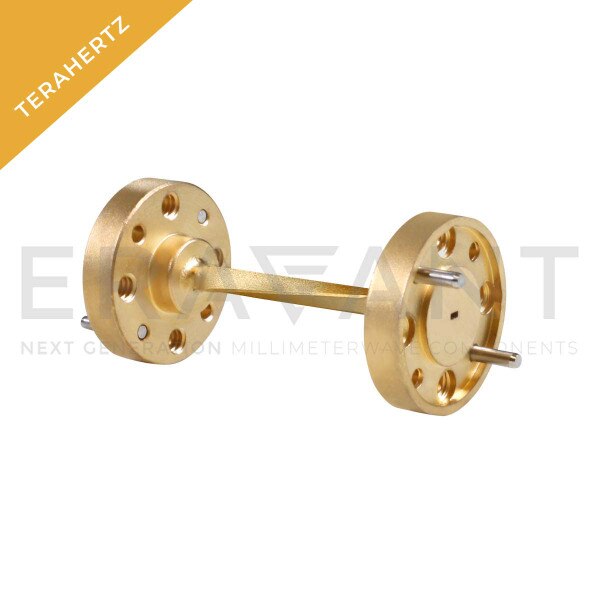

45° Left-Handed Waveguide Twist

WR-04 Waveguide, WR-04 Band, 1.0" Insertion Length
SKU:SWB-04045L-TB-1.0
Availability:Contact Us for Quote
SWB-04045L-TB-1.0 is a 45 degree, WR-04 left-handed waveguide twist with UG-387/U-M anti-cocking flanges. The length of the twist is 1.0”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 170 to 260 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Angle45 Degrees
OrientationLeft-Handed Twist
Bend Radius/Length1.0"
Waveguide SizeWR-04
