45° H-Plane Waveguide Bend

WR-04 Waveguide, 0.75" Bend Radius
SKU:SWB-04045-HB
Availability:Contact Us for Quote

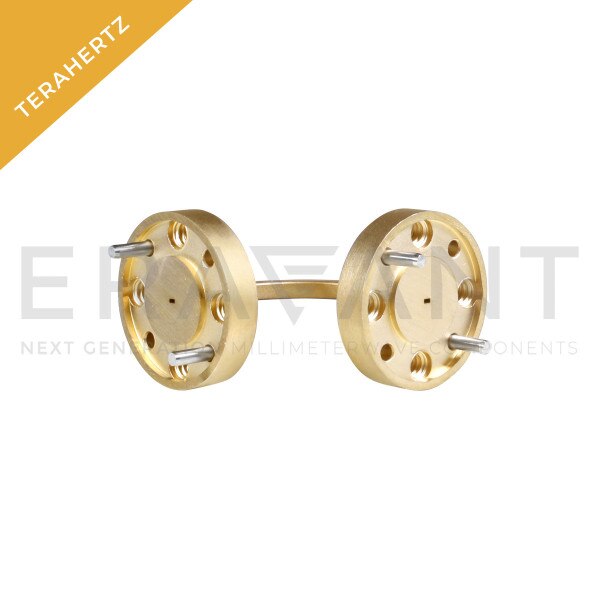

SWB-04045-HB is a 45 degree, WR-04 H-plane waveguide bend with UG-387/U-M anti-cocking flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 170 to 260 GHz. The waveguide is also available in instrumentation grade.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Angle45 Degrees
OrientationH-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-04
