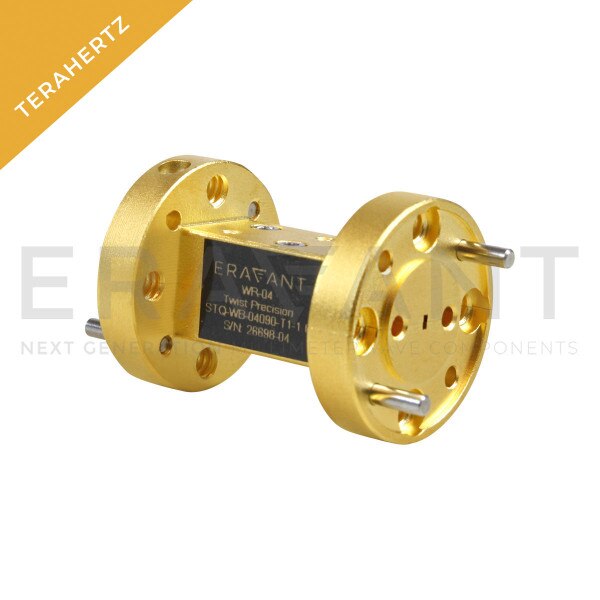

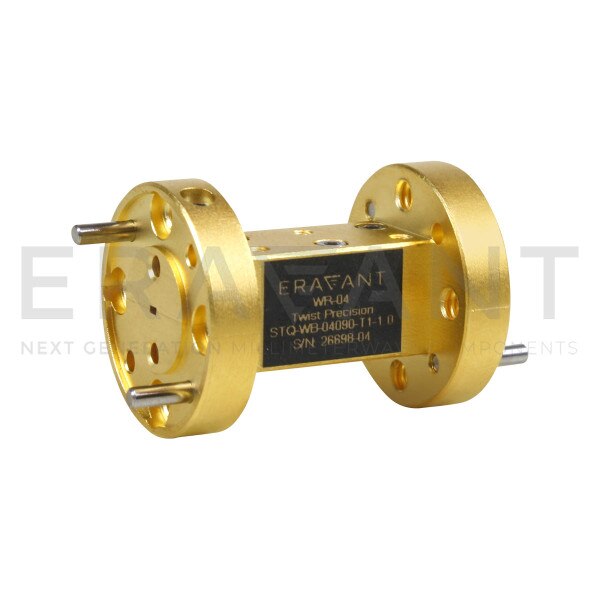

90° Waveguide Twist, Precision Machined

STQ-WB-04090-T1-1.0 is a 90 degree, WR-04 waveguide twist with UG-387/U-M precision anti-cocking flanges. The waveguide twist covers the frequency range of 170 to 260 GHz. The waveguide twist is manufactured with precision machining as a split-block body, which results in a robust, reinforced mechanical structure that will not flex or bend compared to traditional waveguide sections made with thin-wall tubing and brazed joints. Other lengths are available under different model numbers.
