45° Left-Handed Waveguide Twist

WR-03 Waveguide, J-Band, 2.5" Insertion Length
SKU:SWB-03045L-TB-2.5
Availability:Contact Us for Quote

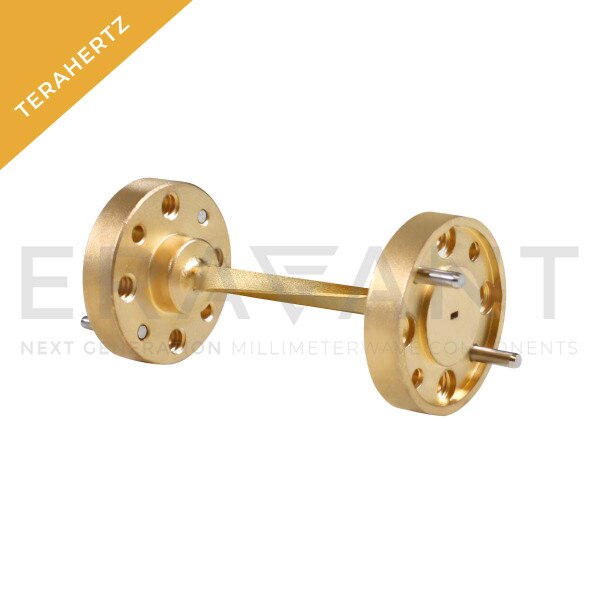

SWB-03045L-TB-2.5 is a 45 degree, WR-03 left-handed waveguide twist with UG-387/U-M anti-cocking flanges. The length of the twist is 2.5”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 330 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Angle45 Degrees
OrientationLeft-Handed Twist
Bend Radius/Length2.5"
Waveguide SizeWR-03
