45° E-Plane Waveguide Bend

WR-03 Waveguide, 0.75" Bend Radius
SKU:SWB-03045-EB
Availability:Contact Us for Quote

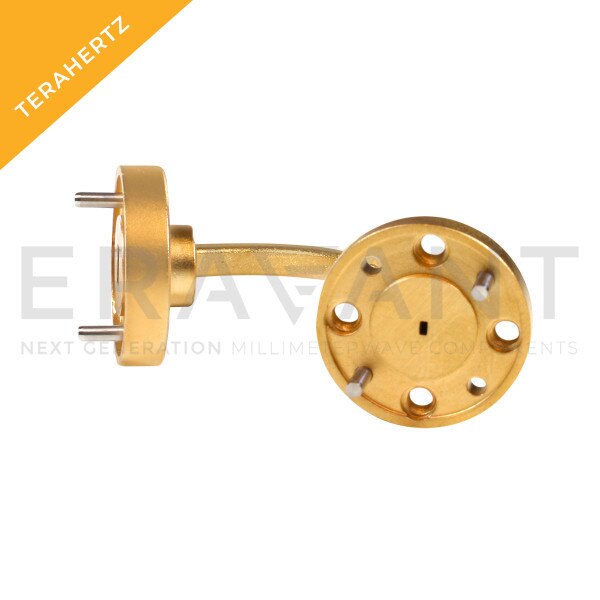

SWB-03045-EB is a 45 degree, WR-03 E-plane waveguide bend with UG-387/U-M anti-cocking flanges. The bend Radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 330 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Angle45 Degrees
OrientationE-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-03
