90° Waveguide Twist

WR-03 Waveguide, WR-03 Band, 2.0" Insertion Length
SKU:SWB-03090-TB-2.0
Availability:Contact Us for Quote

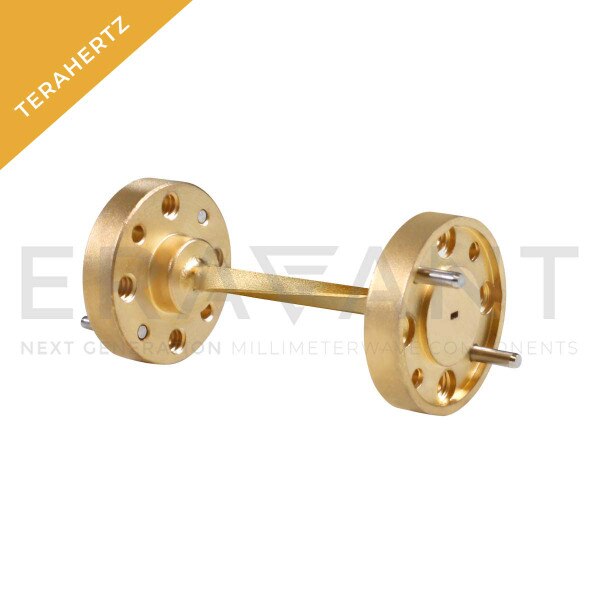

SWB-03090-TB-2.0 is a 90 degree, WR-03 waveguide twist with UG-387/U-M anti-cocking flange. The length of the twist is 2.0”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 330 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Angle90 Degrees
OrientationTwist
Bend Radius/Length2.0"
Waveguide SizeWR-03
