90° H-Plane Waveguide Bend

WR-03 Waveguide, WR-03 Band, 0.75" Bend Radius
Availability:IN STOCKPlease contact us if you need more units than what is available online.
For a more cost effective option that can deliver immediately, consider our Limited Run model SWB-03090-HB-NAC as an alternative solution. Read more about Limited Run Products here.

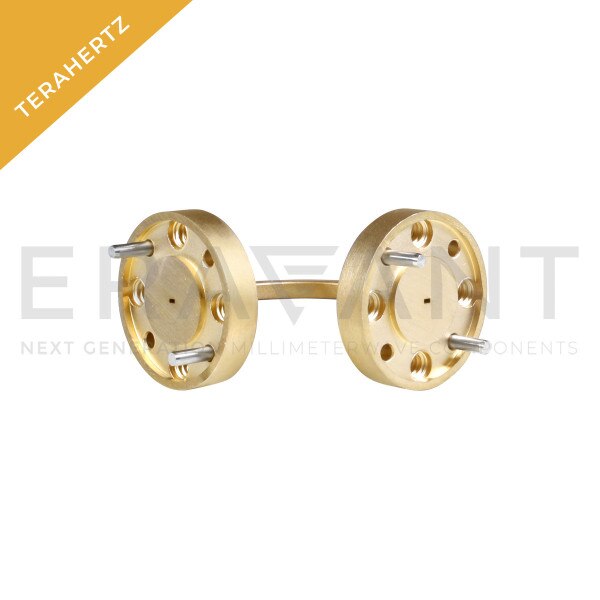

SWB-03090-HB is a 90 degree, WR-03 H-plane waveguide bend with UG-387/U-M anti-cocking flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 325 GHz.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Angle90 Degrees
OrientationH-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-03
