90° E-Plane Waveguide Bend

WR-03 Waveguide, WR-03 Band, 0.75" Bend Radius
SKU:SWB-03090-EB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

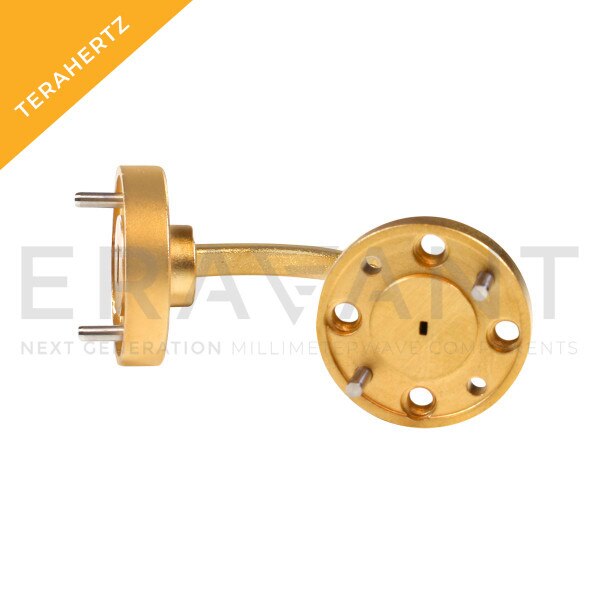

SWB-03090-EB is a 90 degree, WR-03 E-plane waveguide bend with UG-387/U-M anti-cocking circular flanges. The bend radius is 0.75”. The waveguide bend is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide is offered to cover the frequency range of 220 to 325 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $510.00
10 - 24 $459.00
25 - 49 $413.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Angle90 Degrees
OrientationE-Plane Bend
Bend Radius/Length0.75"
Waveguide SizeWR-03
